DISCRETE SEMICONDUCTORS
1/3 page (Datasheet)
M3D054
BAS32L
High-speed diode
Product specification |
1996 Apr 23 |
Supersedes data of November 1993
File under Discrete Semiconductors, SC01
Philips Semiconductors |
Product specification |
|
|
|
|
High-speed diode |
BAS32L |
|
|
|
|
FEATURES
∙Small hermetically sealed glass SMD package
∙High switching speed: max. 4 ns
∙Continuous reverse voltage: max. 75 V
∙Repetitive peak reverse voltage: max. 75 V
∙Repetitive peak forward current: max. 450 mA
∙Forward voltage: max. 1 V.
APPLICATIONS
∙High-speed switching
∙Fast logic applications.
DESCRIPTION
The BAS32L is a high-speed switching diode fabricated in planar technology, and encapsulated in the small hermetically sealed glass SOD80C SMD package.
handbook, 4 columns |
k |
a |
|
|
MAM061
Cathode indicated by black band.
Fig.1 Simplified outline (SOD80C) and symbol.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
VRRM |
repetitive peak reverse voltage |
|
− |
75 |
V |
VR |
continuous reverse voltage |
|
− |
75 |
V |
IF |
continuous forward current |
see Fig.2; note 1 |
− |
200 |
mA |
IFRM |
repetitive peak forward current |
|
− |
450 |
mA |
IFSM |
non-repetitive peak forward current |
square wave; Tj = 25 °C prior to |
|
|
|
|
|
surge; see Fig.4 |
|
|
|
|
|
t = 1 μs |
− |
4 |
A |
|
|
t = 1 ms |
− |
1 |
A |
|
|
t = 1 s |
− |
0.5 |
A |
|
|
|
|
|
|
Ptot |
total power dissipation |
Tamb = 25 °C; note 1 |
− |
500 |
mW |
Tstg |
storage temperature |
|
−65 |
+200 |
°C |
Tj |
junction temperature |
|
− |
200 |
°C |
Note
1. Device mounted on an FR4 printed-circuit board.
1996 Apr 23 |
2 |
Philips Semiconductors |
|
|
Product specification |
||
|
|
|
|
|
|
High-speed diode |
|
|
BAS32L |
||
|
|
|
|
|
|
ELECTRICAL CHARACTERISTICS |
|
|
|
|
|
Tj = 25 °C; unless otherwise specified. |
|
|
|
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
VF |
forward voltage |
see Fig.3 |
|
|
|
|
|
IF = 5 mA |
620 |
750 |
mV |
|
|
IF = 100 mA |
− |
1000 |
mV |
|
|
IF = 100 mA; Tj = 100 °C |
− |
930 |
mV |
IR |
reverse current |
see Fig.5 |
|
|
|
|
|
VR = 20 V |
− |
25 |
nA |
|
|
VR = 75 V |
− |
5 |
μA |
|
|
VR = 20 V; Tj = 150 °C |
− |
50 |
μA |
|
|
VR = 75 V; Tj = 150 °C |
− |
100 |
μA |
V(BR)R |
reverse breakdown voltage |
IR = 100 μA |
100 |
− |
V |
Cd |
diode capacitance |
f = 1 MHz; VR = 0; see Fig.6 |
|
2 |
pF |
trr |
reverse recovery time |
when switched from IF = 10 mA to |
|
4 |
ns |
|
|
IR = 10 mA; RL = 100 Ω; |
|
|
|
|
|
measured at IR = 1 mA; see Fig.7 |
|
|
|
Vfr |
forward recovery voltage |
when switched from IF = 50 mA; |
− |
2.5 |
V |
|
|
tr = 20 ns; see Fig.8 |
|
|
|
THERMAL CHARACTERISTICS
SYMBOL |
PARAMETER |
|
CONDITIONS |
VALUE |
UNIT |
|
|
|
|
|
|
Rth j-tp |
thermal resistance from junction to tie-point |
|
|
300 |
K/W |
Rth j-a |
thermal resistance from junction to ambient |
note 1 |
|
350 |
K/W |
Note
1. Device mounted on an FR4 printed-circuit board.
1996 Apr 23 |
3 |
Philips Semiconductors |
Product specification |
|
|
High-speed diode |
BAS32L |
|
|
GRAPHICAL DATA
300 |
|
|
|
|
|
MBG451 |
|
|
|
|
|
|
|
handbook, halfpage |
|
|
|
|
|
|
IF |
|
|
|
|
|
|
(mA) |
|
|
|
|
|
|
200 |
|
|
|
|
|
|
100 |
|
|
|
|
|
|
0 |
|
|
|
o |
|
|
0 |
100 |
Tamb |
( |
C) |
200 |
|
|
|
|
|

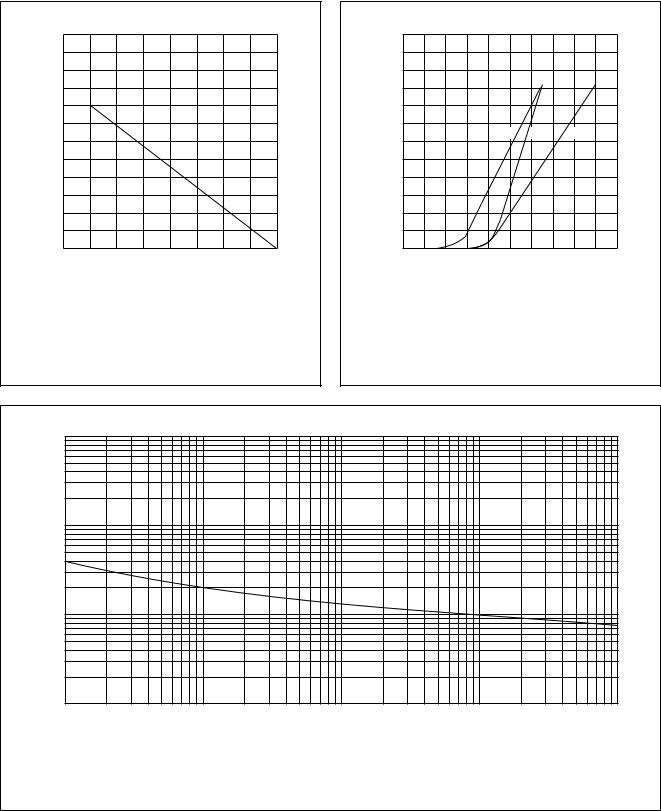

Device mounted on an FR4 printed-circuit board.
Fig.2 Maximum permissible continuous forward current as a function of ambient temperature.
MBG464
600 handbook, halfpage
IF (mA)
400
(1) |
(2) |
(3) |
200
0
0 |
1 |
VF |
(V) |
2 |
|
|
|
(1)Tj = 175 °C; typical values.
(2)Tj = 25 °C; typical values.
(3)Tj = 25 °C; maximum values.
Fig.3 Forward current as a function of forward voltage.
MBG704
102 handbook, full pagewidth
IFSM
(A)
10
1
10−1
1 |
10 |
102 |
103 |
tp (μs) |
104 |
|
|
|
|
|
Based on square wave currents.
Tj = 25 °C prior to surge.
Fig.4 Maximum permissible non-repetitive peak forward current as a function of pulse duration.
1996 Apr 23 |
4 |
Philips Semiconductors |
Product specification |
|
|
High-speed diode |
BAS32L |
|
|
103 |
MGD006 |
|
|
|
|
handbook, halfpage
IR
(μA) 102
(1) |
(2) |
(3) |
10
1
10−1
10−2
0 |
100 |
200 |
|
Tj |
(oC) |

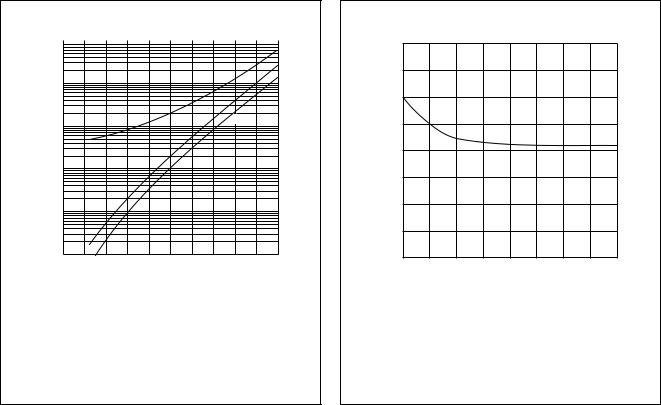

(1)VR = 75 V; maximum values.
(2)VR = 75 V; typical values.
(3)VR = 20 V; typical values.
Fig.5 Reverse current as a function of junction temperature.
MGD004
1.2 handbook, halfpage
Cd (pF)
1.0
0.8
0.6
0.4
0 |
10 |
VR |
(V) |
20 |
|
|
|
f = 1 MHz; Tj = 25 °C.
Fig.6 Diode capacitance as a function of reverse voltage; typical values.
1996 Apr 23 |
5 |
