Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BUT211 |
|
|
|
|
GENERAL DESCRIPTION
Enhanced performance, new generation, high speed switching npn transistor in TO220AB envelope specially suited for high frequency electronic lighting ballast applications.
QUICK REFERENCE DATA
SYMBOL |
PARAMETER |
CONDITIONS |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
VCESM |
Collector-emitter voltage peak value |
VBE = 0 V |
- |
850 |
V |
VCEO |
Collector-emitter voltage (open base) |
|
- |
400 |
V |
IC |
Collector current (DC) |
|
- |
5 |
A |
ICM |
Collector current peak value |
Tmb ≤ 25 ˚C |
- |
10 |
A |
Ptot |
Total power dissipation |
- |
100 |
W |
|
VCEsat |
Collector-emitter saturation voltage |
IC = 3.0 A; IB = 0.3 A |
- |
2.0 |
V |
tf |
Inductive fall time |
ICon = 3.0 A; IBon = 0.3 A |
- |
0.1 |
μs |
PINNING - TO220AB |
PIN CONFIGURATION |
SYMBOL |
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
PIN |
|
|
|
|
DESCRIPTION |
|
|
|
|
tab |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
c |
|
||
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||
1 |
|
|
base |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
2 |
|
|
collector |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
b |
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
3 |
|
|
emitter |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
tab |
|
collector |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
1 |
|
2 |
|
3 |
|
|
|
|
|
|
e |
|
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||

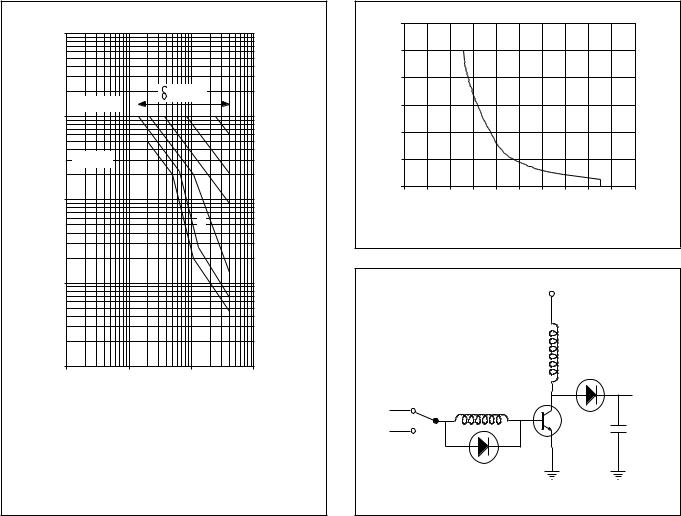

LIMITING VALUES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
Limiting values in accordance with the Absolute Maximum Rating System (IEC 134) |
|
|
|
|
||||||||||||||||||||||||||
|
SYMBOL |
|
PARAMETER |
|
|
|
|
CONDITIONS |
|
MIN. |
|
MAX. |
UNIT |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
VCESM |
|
|
Collector-emitter voltage peak value |
|
|
|
VBE = 0 V |
|
- |
|
850 |
V |
|||||||||||||||||
|
VCEO |
|
|
Collector-emitter voltage (open base) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
400 |
V |
|||||||
|
IC |
|
|
Collector current (DC) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
5 |
A |
||||||
|
ICM |
|
|
Collector current peak value |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
10 |
A |
|||||||
|
IB |
|
|
Base current (DC) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
2 |
A |
||||||
|
IBM |
|
|
Base current peak value |
|
|
|
|
Tmb ≤ 25 ˚C |
|
- |
|
4 |
A |
||||||||||||||||
|
Ptot |
|
|
Total power dissipation |
|
|
|
|
|
- |
|
100 |
W |
|||||||||||||||||
|
Tstg |
|
|
Storage temperature |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
-65 |
|
150 |
˚C |
||||||
|
Tj |
|
|
Junction temperature |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
150 |
˚C |
||||||
THERMAL RESISTANCES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
SYMBOL |
|
PARAMETER |
|
|
|
|
CONDITIONS |
|
TYP. |
|
MAX. |
UNIT |
|||||||||||||||||
|
Rth j-mb |
|
|
Junction to mounting base |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
1.25 |
K/W |
||||||
|
Rth j-a |
|
|
Junction to ambient |
|
|
|
|
in free air |
|
- |
|
60 |
K/W |
||||||||||||||||
May 1992 |
1 |
Rev 1.000 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BUT211 |
|
|

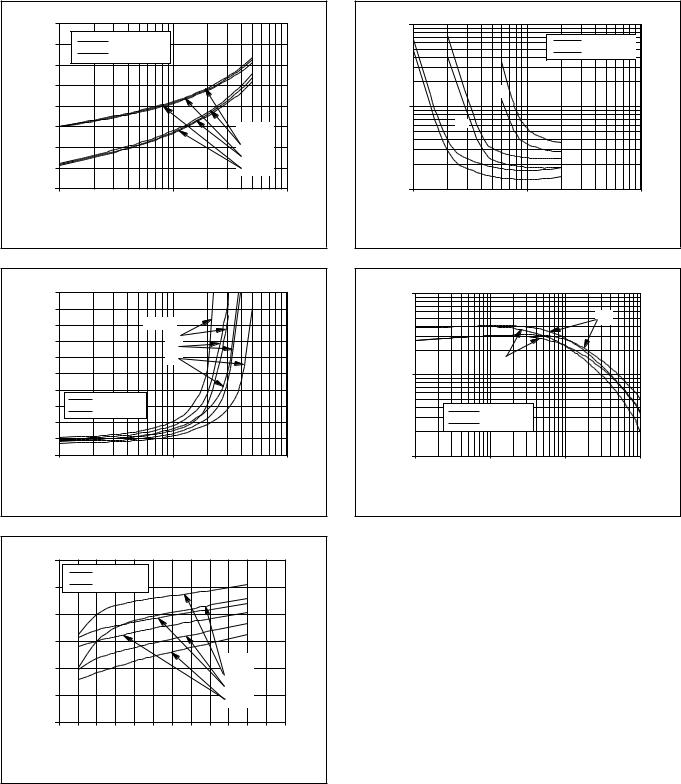

STATIC CHARACTERISTICS
Tmb = 25 ˚C unless otherwise specified
SYMBOL |
PARAMETER |
CONDITIONS |
|
|
MIN. |
TYP. |
MAX. |
UNIT |
||
I |
Collector cut-off current 1 |
V = |
0 V; V |
CE |
= V |
CESMmax |
- |
- |
1.0 |
mA |
CES |
|
BE |
|
|
|
|
|
|
||
ICES |
|
VBE = |
0 V; VCE = VCESMmax; |
- |
- |
2.0 |
mA |
|||
|
|
Tj = 125 ˚C |
|
|
|
|
|
|
|
|
IEBO |
Emitter cut-off current |
VEB = |
9.0 V; IC = 0 A |
- |
- |
10.0 |
mA |
|||
VCEOsust |
Collector-emitter sustaining voltage |
IB = 0 A; IC = 100 mA; |
400 |
- |
- |
V |
||||
|
|
L = 25 mH |
|
|
|
|
|
|
|
|
VCEsat |
Collector-emitter saturation voltage |
IC = 3.0 A; IB = 0.3 A |
- |
0.8 |
2.0 |
V |
||||
VBEsat |
Base-emitter saturation voltage |
IC = 4.0 A; IB = 0.6 A |
- |
- |
1.3 |
V |
||||
hFE |
DC current gain |
IC = 1.0 A; VCE = 2 |
V |
13 |
23 |
30 |
|
|||
hFE |
|
IC = 4.0 A; VCE = 2 |
V |
6 |
10.5 |
- |
|
|||
hFE |
|
IC = 3.0 A; VCE = 2 |
V |
10 |
13 |
- |
|
|||
DYNAMIC CHARACTERISTICS
Tmb = 25 ˚C unless otherwise specified
SYMBOL |
PARAMETER |
CONDITIONS |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
|
|
ts |
Switching times resistive load |
ICon = 3.0 |
A; IBon = 0.3 A; -IBoff = 0.6 A |
1.5 |
2.0 |
μs |
Turn-off storage time |
|
|
||||
tf |
Turn-off fall time |
|
|
0.5 |
0.8 |
μs |
|
Switching times inductive load |
ICon = 3.0 |
A; IBon = 0.3 A; LB = 1 μH; |
|
|
|
ts |
Turn-off storage time |
-VBB = 5 V |
1.0 |
1.2 |
μs |
|
|
|
|||||
tf |
Turn-off fall time |
ICon = 3.0 |
A; IBon = 0.3 A; LB = 1 μH; |
60 |
100 |
ns |
|
|
|
|
|
||
ts |
Turn-off storage time |
-VBB = 5 V; Tj = 100 ˚C |
1.1 |
1.4 |
μs |
|
|
|
|||||
tf |
Turn-off fall time |
|
|
120 |
250 |
ns |
+ 50v 100-200R
|
Horizontal |
|
Oscilloscope |
|
Vertical |
300R |
1R |
6V
30-60 Hz

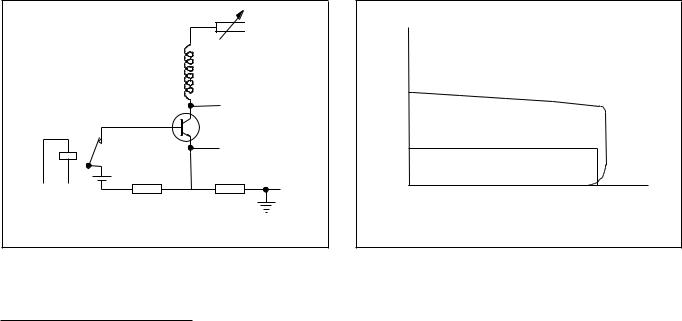

Fig.1. Test circuit for VCEOsust.
IC / mA
250
200
100
0
VCE / V |
min |
VCEOsust
Fig.2. Oscilloscope display for VCEOsust.
1 Measured with half sine-wave voltage (curve tracer).
May 1992 |
2 |
Rev 1.000 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BUT211 |
|
|
|
|
VCC |
|
|
|
RL |
|
VIM |
RB |
|
|
0 |
T.U.T. |
||
|
|||
tp |
|
|
|
T |
|
|
|

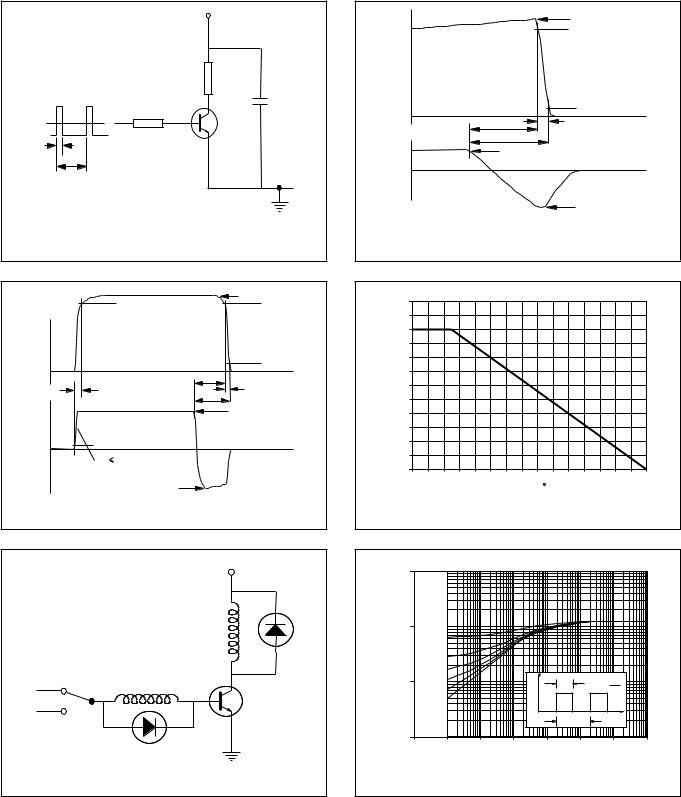

Fig.3. Test circuit resistive load. VIM = -6 to +8 V |
|||
