Материал: Seminar_3_Magnetostatics_Two-wire_line_How_to

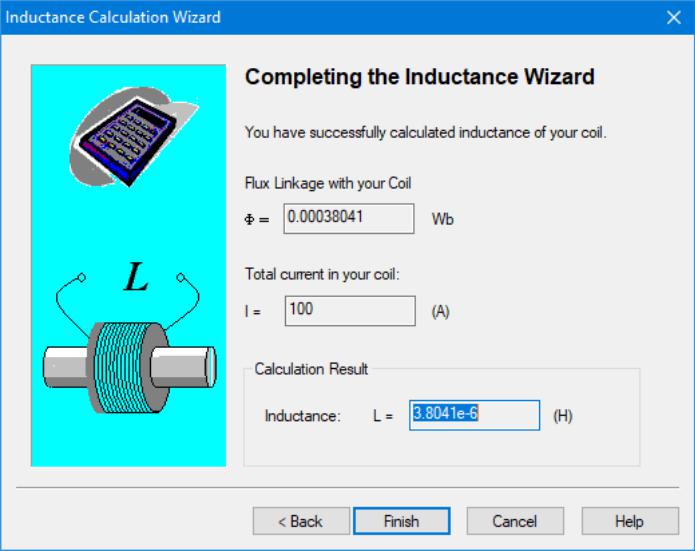

Calculate Inductance of the Two-Wire Line (3/3)
Inductance is calculated via flux linkage
The same result can be obtained using the energy of magnetic field.
Return to the starting page of inductance wizard and walk through the sequence of pages
|
|
WEEK 2. QUICKFIELD FUNDAMENTALS |
16 |
|
|

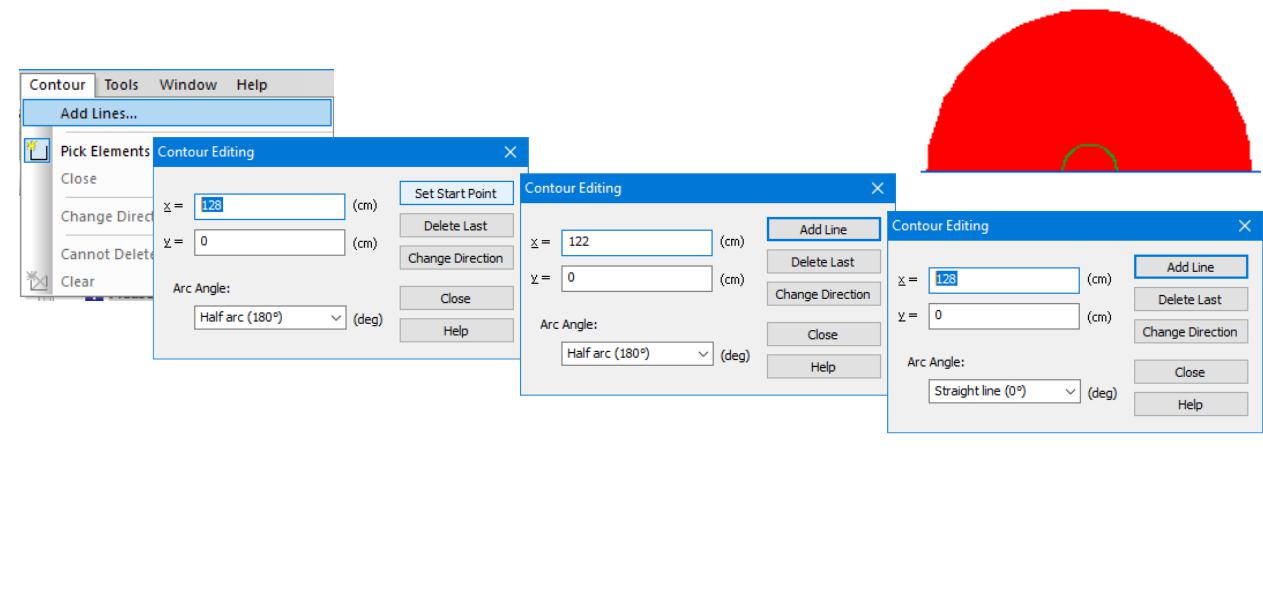

Mechanical force acting to the wire (1/2)
The mechanical force is calculated as a flux of Maxwell stress tensor trough a closed surface. To start integration the contour is need.
1
2
3
4
|
|
WEEK 2. QUICKFIELD FUNDAMENTALS |
17 |
|
|

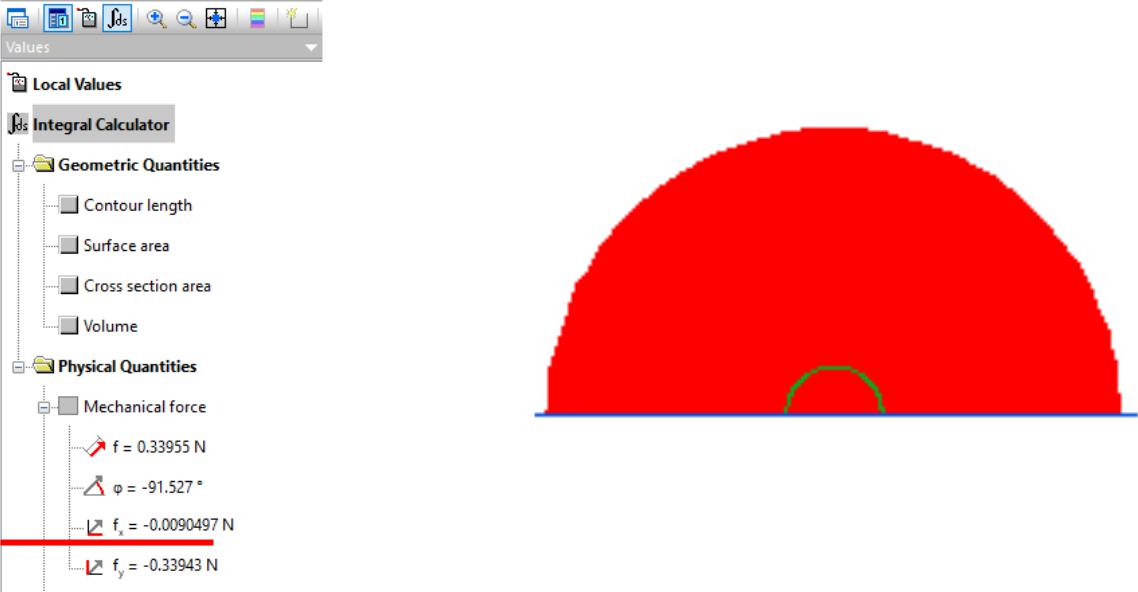

Mechanical force acting to the wire (2/2)
Integration contour defines the closed surface.
Only X-component of the force makes sense.
The Y-component vanishes due to symmetry.
|
|
WEEK 2. QUICKFIELD FUNDAMENTALS |
18 |
|
|

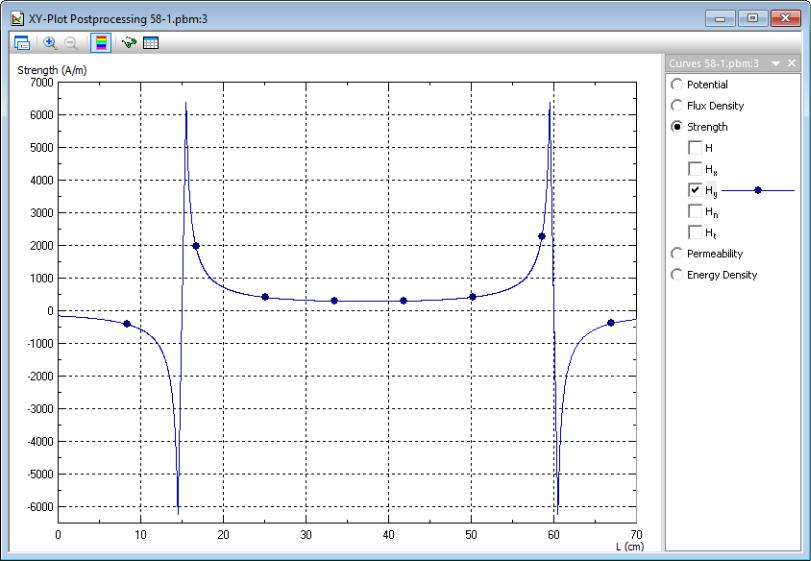

HX field along the X-axis in vicinity of the line
Contour for this XY-plot
starts at (110; 0), ends at (185; 0)
|
|
WEEK 2. QUICKFIELD FUNDAMENTALS |
19 |
|
|

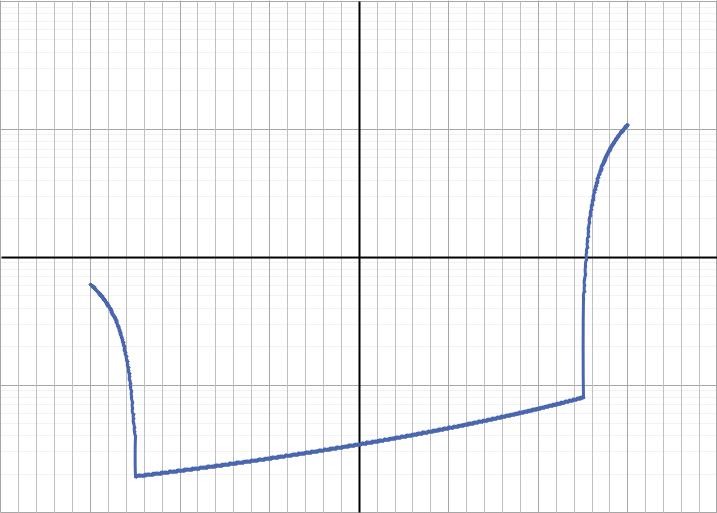

HX field along the X-axis in vicinity of the cylinder
Hn (A/m) |
|
100 |
Contour for this XY-plot: |
|
|
|
starts at (-60; 0), |
10 |
ends at (60; 0) |
|
|
|
|
|
|
|
|
|
|
The 60 is the radius of the |
|
|
|
|
1 |
|
|
|
|
cylinder plus some small |
-80 |
-60 |
-40 |
-20 |
0 |
20 |
40 |
60 |
80 |
extent. |
|
|
|
|
|
|
|
|
|
0.1
0.01
|
|
